HE27J Compact Excavator: 0.1m³ Bucket, 14KW Engine

Excavators

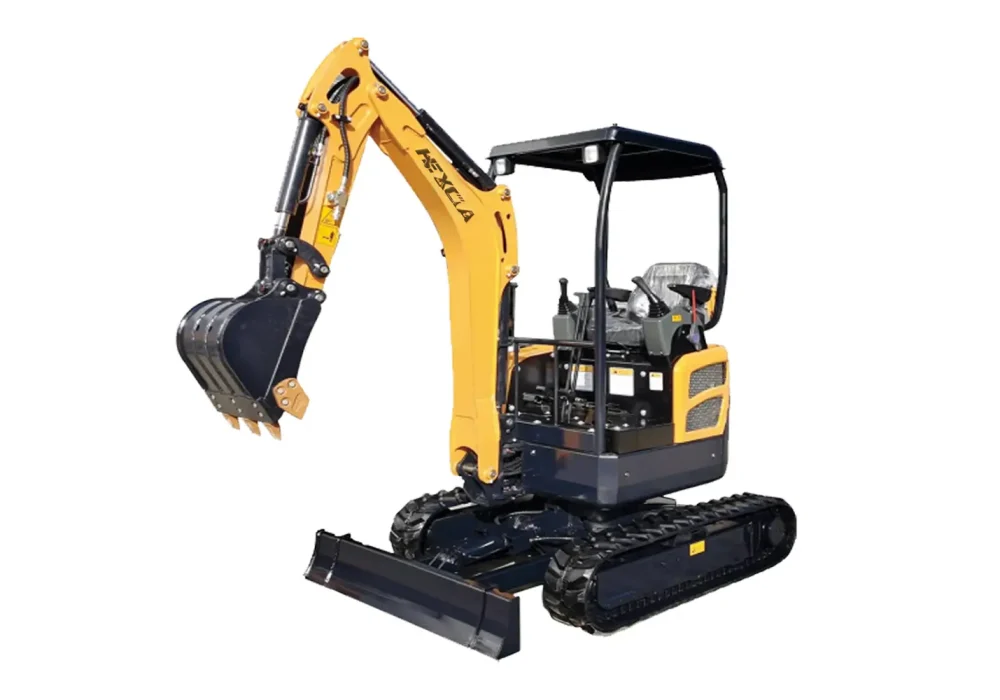

Boost Your Excavation Efficiency with the Compact HE27J Excavator

The HE27J Excavator is designed for maximum performance and efficiency in compact spaces. With dimensions of 4195 x 1550 x 2480 mm and a bucket capacity of 0.1 m³, this versatile excavator is perfect for tight job sites. Powered by a 14 KW engine, the HE27J delivers reliable strength with a maximum digging depth of 2830 mm and a digging radius of 4835 mm, allowing for precise excavation on any terrain.

The excavator’s 10 RPM swing speed and impressive 58° gradeability offer excellent maneuverability and power on uneven ground. Its minimum swing radius of 2160 mm ensures seamless operation in confined spaces, making it an ideal choice for both urban and rural projects.

Choose the HE27J Excavator for optimized productivity, compact design, and powerful performance.

Bucket Capacity

0.1 m³

Engine Model

D1105-E4B

Power

14 KW

Cabin Height

2480 mm

Inquire Now

Product Description Specifications: Bucket Capacity: 0.1 m³ Swing Speed: 1-10 RPM Gradeability: 58° Max. Bucket Digging Force: 23.5 KN Max. Arm Digging Force: 14 KN Engine Model: D1105-E4B Power/Revolution Speed: 14 KW/2000 RPM System Pressure: 21.5 MPa Machine Size: Dimension (LWH): 4195*1550*2480 mm Cabin Height: 2480 mm Axle Base: 1550 mm Wheel (Track) Distance: 1250 mm Minimum Ground Clearance: 285 mm Tail Swing Radius: 860 mm Working Range: Max. Dozer Blade Cutting Distance: 360 mmm Max. Digging Height: 4427 mm Max. Dumping Height: 3005 mm Max. Digging Depth: 2830 mm Max. Vertical Digging Depth: 2500 mm Max. Digging Radius: 4835 mm Min. Swing Radius: 2160 mm Max. Dozer Blade Lifting Distance: 308 mm
